Finding novel ideas in established research domains requires more than just reading through existing patents. The challenge lies in understanding not just what's already been documented, but identifying the content gaps—the combinations and connections that haven't been explored yet. This practical guide walks through a systematic innovation strategy for analyzing patent databases using the knowledge graph visualization tools InfraNodus with the help of a method that reveals the hidden structure of innovation landscapes and points toward untapped opportunities in real-world applications.
The core technique involves transforming patent search results into visual networks where concepts become nodes and their relationships form connections.
By mapping the discourse this way, you can spot which ideas frequently appear together and, more importantly, which relevant concepts exist in the same field but rarely get linked in the patent applications.
Those disconnected clusters often represent the most promising territory for new inventions. This innovation method works whether you're a patent search analyst, researcher, or entrepreneur looking to develop an innovation strategy template for your organization.
Please, watch the tutorial below or learn more about the workflow step by step:
Using the Knowledge Graph to Develop an Innovation Strategy
The innovation method presented here centers on a fundamental principle: the best new ideas often emerge by connecting concepts that exist within the same domain but haven't yet been linked together. By visualizing patent search results as knowledge graphs, you can identify these disconnected clusters and bridge them in novel ways—an approach that combines data visualization best practices with strategic innovation methods.
This approach uses InfraNodus, an online visualization and analysis tool that transforms text into visual knowledge graphs where words become nodes and their co-occurrences form connections. The system applies network science principles to reveal the underlying structure of any discourse, highlighting the most influential concepts and identifying distinct topical clusters. Unlike SEO tools like Ahrefs or Semrush that focus on content gap analysis for rankings, this method reveals conceptual gaps in actual research and innovation domains.
What makes this particularly valuable for patent analysis is that influence in these graphs doesn't simply mean frequency. Instead, the system identifies concepts based on their betweenness centrality—essentially measuring how well they connect different topics together, much like influential people in social networks bridge different communities. This gap analysis template can be applied across any technical field, from biotech to software patents.
Step 1: Visualizing Patent Search Results with InfraNodus
The process begins by selecting a research area and querying Google Patents. For this demonstration, we'll use "HRV" (heart rate variability) as an example, though this innovation method works for any technical field—from software systems to medical devices.
Starting with InfraNodus as your data visualization tool, navigate to the apps section and select the brainstorm area. Enter your search query and choose the Google Patent analysis app. An important decision at this stage involves what content to analyze—you can examine titles and search snippets for a general overview, or dive deeper into abstracts for more detailed analysis.
For initial exploration, analyzing titles and snippets provides an excellent filter, showing you what Google's patent search algorithm considers most relevant to your topic. In the advanced settings, you can choose between extracting entities or working with full words. While entity extraction might seem more precise, using complete words often yields better results when combining this analysis with AI, as it provides richer contextual information.

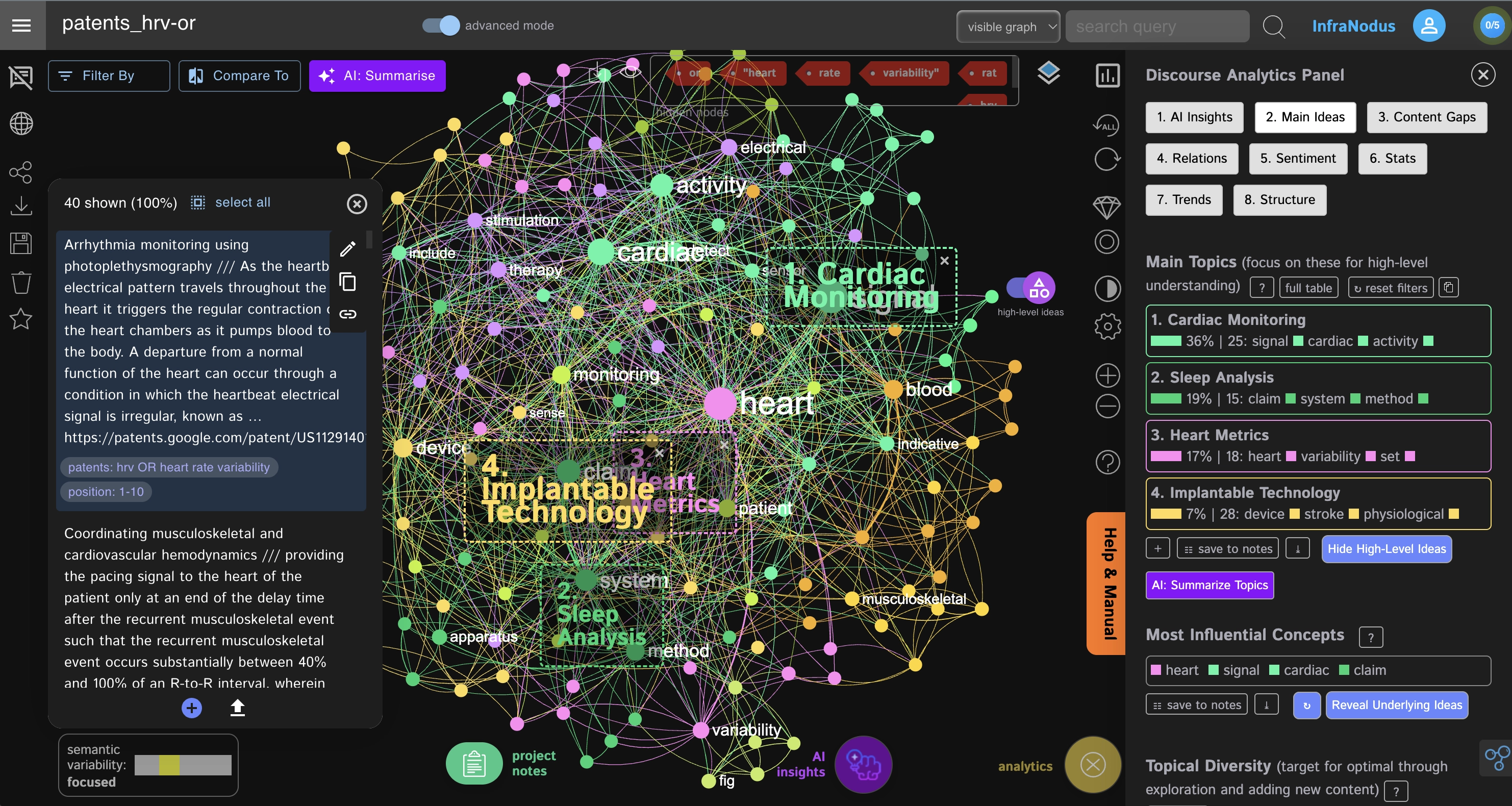

Once you initiate the visualization, the top 40 patents appear as an interconnected graph (above).
Larger nodes represent more influential concepts—not necessarily the most frequent terms, but those that bridge different topics together (using the betweeness centrality network analysis measure).
Concepts belonging to the same thematic cluster (identified using the modularity and community detection algorithms) appear in matching colors and tend to cluster spatially.
This real-world application of network analysis gives you an immediate visual understanding of the patent landscape. Note, that we're not even using AI at this point! It is only optionally used to generate the names for the topical clusters identified. Everything else is based on a peer-reviewed algorithm for text network analysis we developed.
Step 2: Refining Your Knowledge Graph - Removing the Top Layer of Obvious Ideas
The initial visualization typically includes many generic terms common to patent language. The next crucial step involves removing these obvious concepts to reveal deeper insights—this is where real content gap analysis begins.
Start by eliminating redundant terms. In our HRV example, since "HRV" itself stands for heart rate variability, removing it declutters the graph. Similarly, generic patent terminology like "system," "method," "claim," and "comprise" can be stripped away. This structural analysis reveals the actual innovation concepts beneath the legal language.
This refinement process is actually a form of active learning. As you remove each layer of obvious concepts, you progressively understand the discourse's terminology and structure. Terms like "data" might seem important initially, but removing them often reveals more meaningful connections underneath.

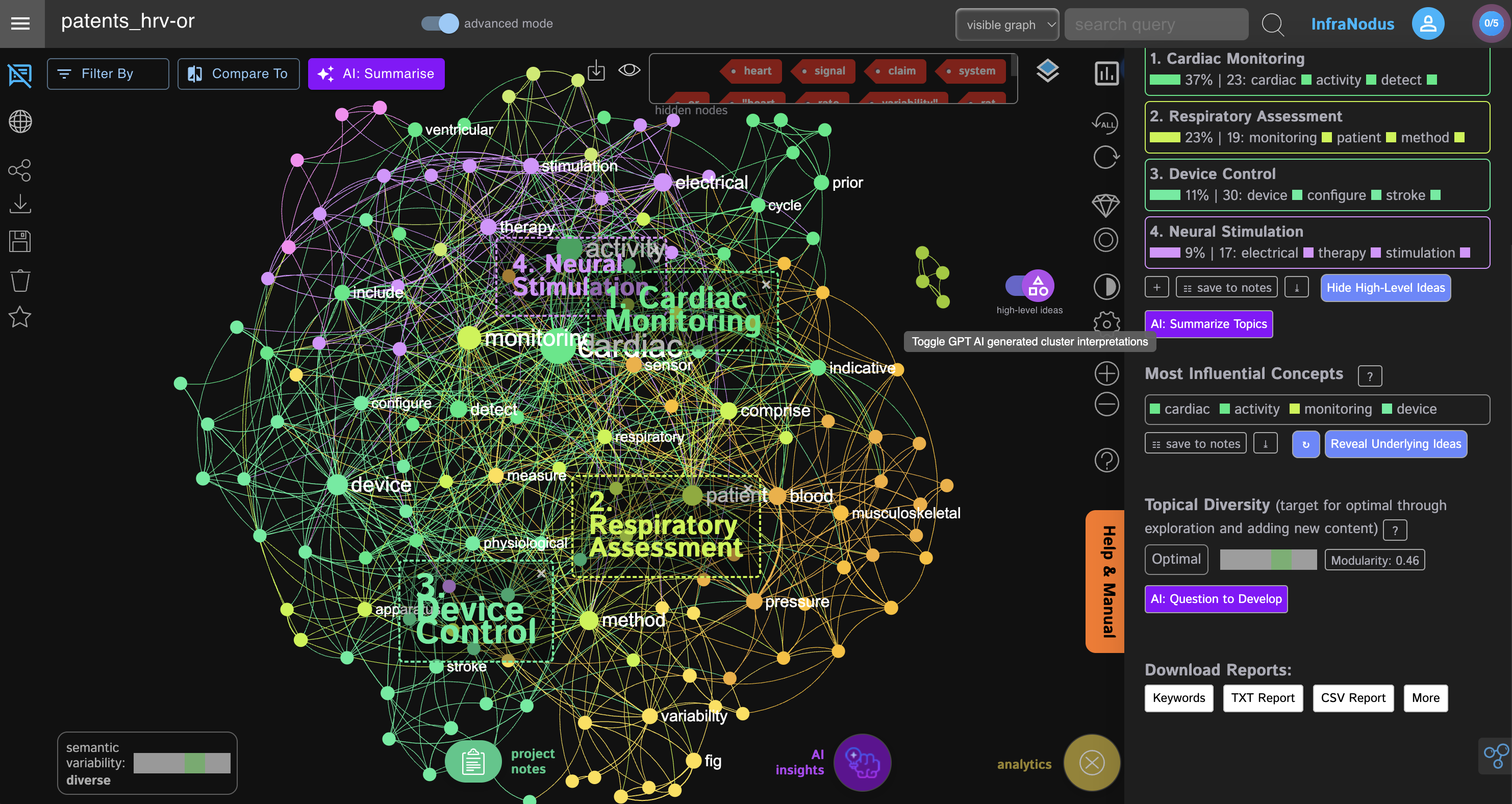

InfraNodus provides a helpful metric called "topical diversity" to guide this process. Continue refining until the graph reaches an "optimal" diversity state, indicated when the graph becomes heterogeneous with distinct islands of activity—separate clusters representing different thematic areas. At this point, the modularity has reached a sufficient level to extract meaningful insights. This approach differs from traditional SEO content analysis tools by focusing on conceptual relationships rather than keyword density.
Step 3: Identifying Topical Clusters

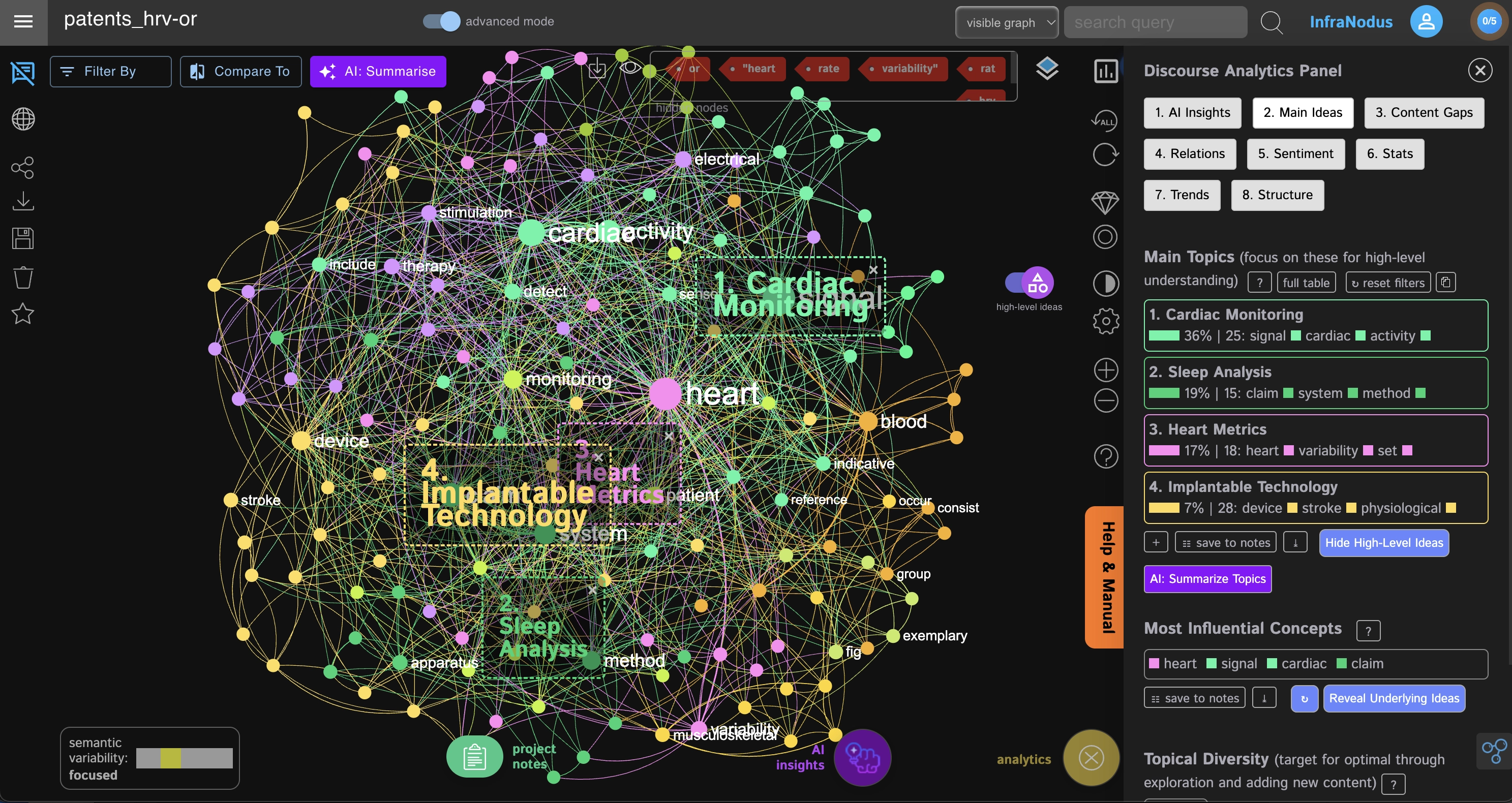

With a refined graph, you can now examine the main themes within your patent landscape. The analysis panel reveals these clusters, and you can toggle settings to display cluster names directly on the graph.
In the HRV patent analysis, distinct clusters might emerge around themes such as:
- Sleep metrics and quality assessment
- ECG parameter analysis
- Wearable monitoring devices
- Physical activity measurements
- Pulse diagnosis techniques
- User sensor development
This high-level overview immediately tells you how inventors discuss your topic. Understanding that HRV patents commonly address sleep analysis, ECG interpretation, wearable technology, and activity tracking provides valuable context for identifying opportunities.
You can dive deeper into any cluster that interests you. Selecting a smaller but intriguing topic—like pulse diagnosis—and clicking on its terms reveals the specific context in which they appear. This might lead you to discover, for instance, a patent describing "an analysis system and method for pulse analysis in Chinese medicine," connecting traditional diagnostic approaches with modern HRV measurement.
Step 4: Discovering Content Gaps - Strategic Innovation Opportunities
Here's where the innovation strategy becomes truly powerful. The knowledge graph's structure reveals not just what patents discuss, but what they're not yet connecting. These gaps represent potential opportunities for novel inventions and can form the basis of your innovation method template.

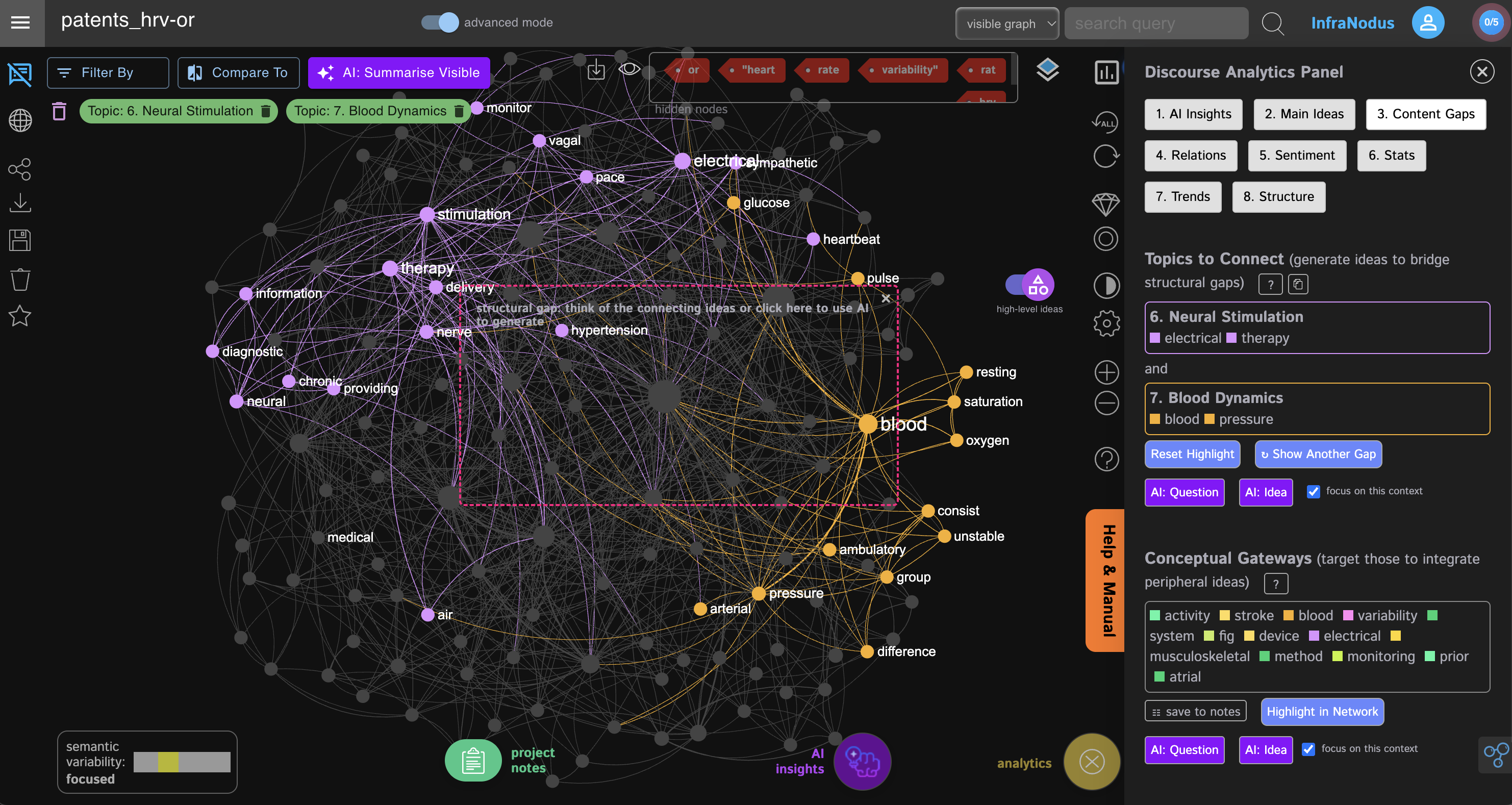

Navigate to the content gaps section and highlight disconnected clusters on the network. The system identifies topical groups that exist within the same domain but remain isolated from each other. According to social network theory, innovation often occurs at the bridges between clusters within communities—and the same principle applies to concepts. This structural gap analysis differs fundamentally from SEO content gap reports, as it identifies conceptual opportunities rather than keyword coverage.
In our example, the system might identify a gap between temporal features (relating to intervals and measurements over time) and glucose patterns. These concepts both appear in the patent landscape but rarely connect. For patent search analysts and researchers, identifying these gaps is crucial for developing novel patent claims or research directions.
Step 5: Generating Novel Research Questions
Once you've identified a promising gap, you can leverage AI to generate research questions that would bridge these disconnected concepts. This approach is particularly valuable because it encourages deeper thinking about potential applications.
For the temporal patterns and glucose measurements gap, AI might generate a question like: "How can we utilize temporal patterns of heart rate variability and continuous blood glucose measurements to enhance personalized mental stress prediction using wearable devices?"
This question is compelling because it connects mental stress assessment with both HRV analysis and blood glucose monitoring—all relevant concepts in the field that aren't typically combined in existing patents. This type of synthesis could form the basis for a novel patent claim.
Step 6: Developing Concrete Product Ideas
If you prefer more concrete concepts over research questions, you can ask the AI to generate specific product ideas. For the same gap, the system might propose: "Develop a wearable device that continuously monitors heart rate variability and blood glucose simultaneously, analyzing both metrics to determine stress levels and predict glucose fluctuations."
This suggestion identifies a potential market opportunity. While devices exist that measure either HRV or blood glucose, few if any combine both measurements in real-time for integrated stress and metabolic assessment. This could represent a viable product concept or application idea worth exploring further.
Step 7: Deep-Diving into Individual Patents
Beyond analyzing patent landscapes, you can examine individual patents in detail using the same knowledge graph approach. Once you've identified an interesting patent from your initial search, create a new graph specifically for that document.
Return to the apps section and enter the patent's name in the Google Patent analysis tool. This time, select to analyze the patent's claims specifically—the legal statements that define the invention's scope and novelty.
The resulting graph provides a visual overview of the patent's main concepts. You might see clusters around Chinese medicine concepts, pulse dynamics, measurement parameters, signal processing techniques, and sensitivity analysis. This visualization helps you quickly understand the patent's scope and identify its core innovations.
Building a Research Database
As you continue this process, you can gradually build a comprehensive knowledge base by adding related patents to your graph. This cumulative approach allows you to:
- Compare multiple patents on similar topics
- Identify recurring themes and approaches
- Spot consistent gaps across the entire field
- Generate increasingly sophisticated ideas based on broader patterns
You can also compare patent landscapes with academic research by visualizing papers from Google Scholar alongside patents, revealing differences between theoretical research and practical applications.
Why This Innovation Method Works: Data Visualization Meets Strategy
This knowledge graph approach to patent analysis succeeds because it makes visible the invisible structure of innovation landscapes. Rather than reading patents sequentially or relying on keyword searches alone, you can:
- See the big picture instantly through visual clustering and data visualization
- Identify influential concepts that bridge multiple areas using network analysis
- Discover systematic gaps rather than random opportunities through structural analysis
- Generate ideas grounded in existing knowledge but novel in their connections
- Validate that your concepts address real gaps rather than reinventing existing solutions
- Create reusable innovation strategy templates based on proven gap analysis methods
The method combines human insight with computational analysis. The AI doesn't replace human creativity—it amplifies it by handling the heavy lifting of pattern recognition and initial idea generation, freeing you to focus on evaluation and refinement. Unlike traditional SEO tools that analyze content performance, this approach reveals conceptual opportunities in the actual knowledge domain, whether that's patent claims, academic papers, or market positioning.
Practical Applications Beyond Patents: Free Innovation Strategy Templates
While this guide focuses on patent analysis, the same innovation methodology applies to:
- Academic research: Identify gaps in scholarly literature to define dissertation topics or research programs using Google Scholar integration
- Market analysis: Understand how competitors position their products and find underserved niches through strategic content gap analysis
- Content strategy: Discover topics your industry discusses but doesn't adequately connect—useful for both SEO and thought leadership
- Product development: Find feature combinations that customers value but no existing product offers
- Teaching innovation: Create structured learning materials that connect theoretical concepts with practical applications
- Remote work opportunities: Patent search analyst positions increasingly value candidates who understand both legal patent language and data visualization methods
This free online tool approach democratizes innovation strategy, making advanced analytical methods accessible beyond traditional corporate R&D departments. Whether you're developing an innovation strategy template for your organization or conducting independent research, these visualization techniques provide actionable insights.
Getting Started with Your Own Analysis: Free Tools and Templates
To begin applying this innovation method to your field of interest:
- Choose a specific technical area or research question
- Use Google Patents or Google Scholar to gather relevant documents
- Visualize the top results as a knowledge graph using InfraNodus (free online trial access available)
- Refine the graph by removing generic terms until you achieve optimal topical diversity
- Examine the topical clusters to understand the field's structure through data visualization
- Identify content gaps between disconnected but related clusters using the gap analysis template
- Generate research questions or product ideas that bridge these gaps
- Dive deep into promising patents to understand prior art and existing claims
- Build your knowledge base incrementally by adding related documents
-
Export your findings as a structured innovation strategy report
Free Resources for Patent Search Analysts and Researchers:
- InfraNodus offers free tiers for exploratory analysis
- Google Patents provides comprehensive patent database access at no cost
- Google Scholar integration enables cross-referencing academic research
- Template downloads available for creating your own innovation strategy framework
Conclusion: Systematic Innovation Through Visual Analysis and Strategic Methods
Innovation doesn't have to be a mysterious process of random inspiration. By visualizing knowledge as networks and identifying structural gaps, you can systematically discover opportunities for novel contributions. Whether you're filing patents, conducting research, or developing products, this innovation strategy provides a repeatable method for finding the white spaces where breakthrough ideas emerge.
The combination of free knowledge graph visualization tools and AI-assisted ideation creates a powerful toolkit for modern innovation. You gain the ability to see patterns across hundreds of documents instantly, identify overlooked connections, and generate concrete ideas grounded in existing knowledge but novel in their synthesis. This gap analysis template approach works across domains—from patent search to content strategy to product development.
Most importantly, this process is engaging and intellectually stimulating. Exploring information through visual graphs, discovering unexpected connections, and watching novel ideas emerge from systematic analysis makes research feel less like tedious literature review and more like an exciting treasure hunt through the landscape of human knowledge. For patent search analysts, researchers, and innovators alike, these free online tools democratize access to sophisticated analytical methods previously available only to large research institutions.
Key Takeaways for Your Innovation Strategy:
- Use free data visualization tools to map knowledge domains
- Apply gap analysis templates to identify structural opportunities
- Combine Google Patents with knowledge graphs for comprehensive patent analysis
- Bridge disconnected concepts to generate novel ideas
- Create reusable innovation methods that scale across projects
